Project information

  • Category: Smart Monitoring Devices & Software
  • Target Client: Business Owner
  • Project date: 01 Jan, 2020
  • Software Version: 3.0.6.1

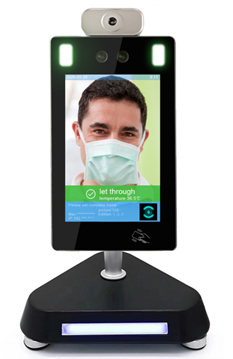

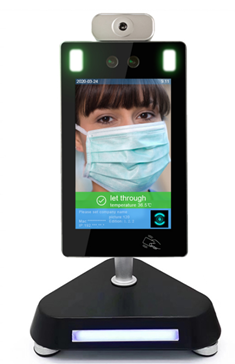

Smart Temperature Screening Device

Business owner can utilize this cutting edge technology to help on measuring your visitors, customers & staffs temperature without having a personnel to take the temperature manually. In addition it records all the visitor records, it ease up for contact tracing or audit purposes.

Core Features

Thermal Imaging

Full area temperature measurement by utilizing thermal imaging. Ability to screen abnormal temperature points in any area.

Responsive

Real-time temperature response and real-time data analysis. Improve temperature measurement efficiency.

Flexibility option

Support: face recognition, QR code recognition, identity card recognition or NFC.

Camera

Wide dynamic range recognition camera. Ability to handle bright and dark conditions.

Recognition algorithm

Deep learning-based face recognition algorithm. Face capture accuracy rate is greatly improve.

Alert settings

Supports temperature variance and alarm settings. Improving monitoring efficiency.

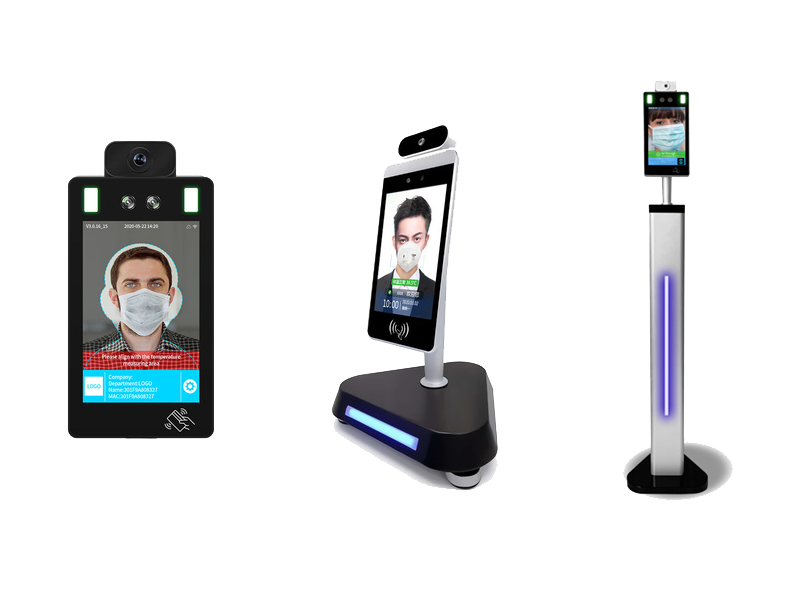

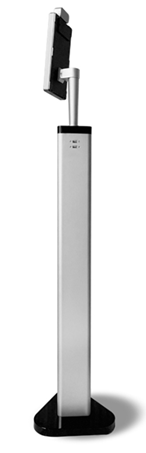

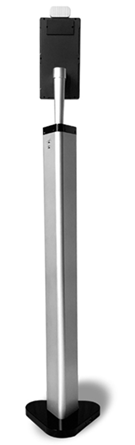

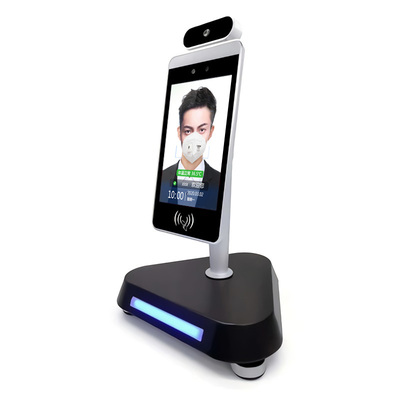

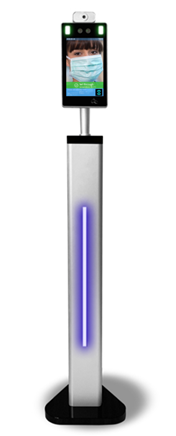

Installation

More cool features

Contactless

Support cloud and local identification

Support recognition distance configuration

Support Offline mode and supporting massive historical record storage

Fast, high recognition accuracy and fast verification speed

HD color screen and high resolution

High quality of the speaker and good device ventilation point

Support Chinese and English switching

Support U disk download, self-service report

Supports multiple system functions such as access control, access and etc

Specification

Display Size

8 inch

Display type

IPS LCD Capacitive 10 point touch screen

Dimensions

290*145*26 mm

Processor

32 bit quad-core ARM Chip RK3288

Memory

2GB

Flash

8GB

Measurement Technology

Thermal imaging temperature measurement

Measurement Distance

0.5m~0.8m

Communication Method

TTL

Temperature Measurement Accuracy

±0.2℃~±0.5℃

Working Temperature

-20~65℃

Storage temperature

-40~65℃

Power supply

3-5V

Electronic current

2ma

Baud rate

9600/115200

Default auto output frequency

14Hz

Wavelength range

8~14µm

Temperature output

Real-time parallel output

Temperature correction

Manual and automatic calibration

Alarm threshold

Adjustable

Wiegand interface

Support Wigan 26, Wigan 34

Other Interface

232 TTL WIFI RJ45

Style

Symmetrical design for horizontal and vertical hanging

Camera

200w: USB,Binocular camera, wide dynamic, anti-glare
Aperture 2.8, focal length 1.6mm, field of view 130 °, TV distortion < -5%, photosensitive area size 1 / 5-inch
Pixels: According to customer requirements, ≥2 million pixels
Assembly angle: flat out

Image Sensor

6mm focal length, F2.4 aperture

Fill light

LED: white light, RGB camera fill light, a control interface in SDK
NIR:850nm infrared LED Light, IR camera fill light source, control interface in SDK

Operating System

Android 7.1

Input power

12V2A

Backlight recognition illumination

< 6000Lux

Effective recognition distance

0.5m to 4 m

Working Environment

Indoor

Working Temperature

-20℃~+55℃

Reading speed

0.2S


If you are keen on this product, please contact us via mail or phone
